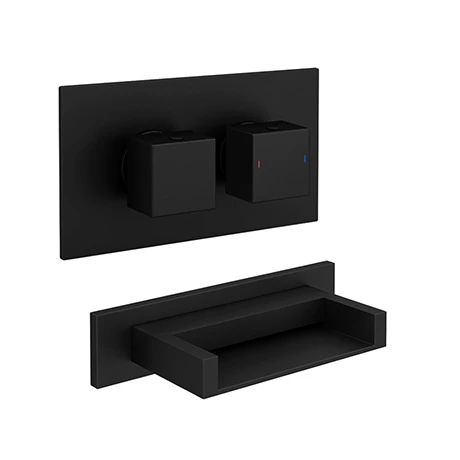

Toreno Matt Black Wall Mounted Waterfall Bath Filler + Concealed Thermostatic Valve

Toreno Matt Black Wall Mounted Waterfall Bath Filler + Concealed Thermostatic Valve

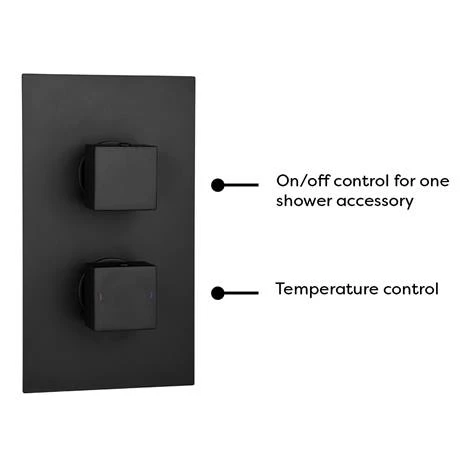

The Toreno matt black luxury wall mounted fixed shower/bath waterfall filler with concealed thermostatic shower valve – Create a stunning design statement in your new bathroom. The concealed thermostatic valve offers thermostatic bath filling/showering via two easy-to-operate controls for temperature and flow.

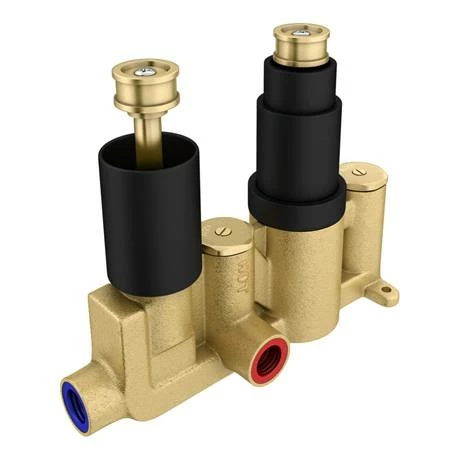

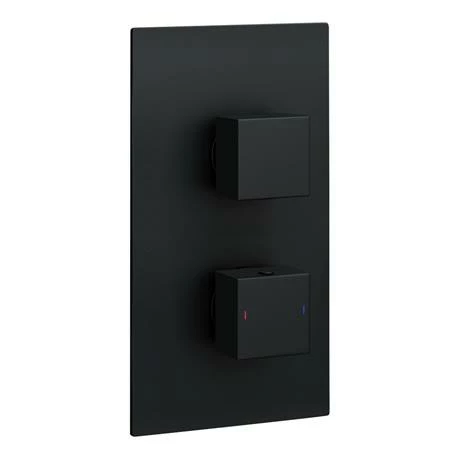

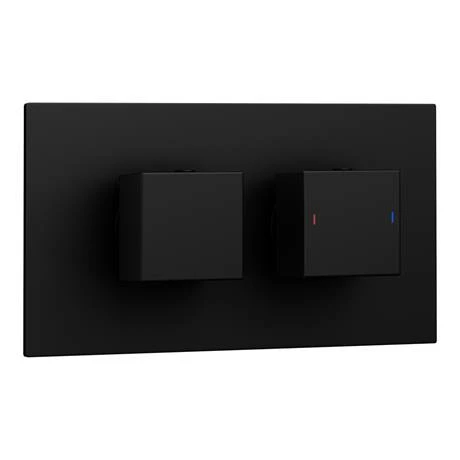

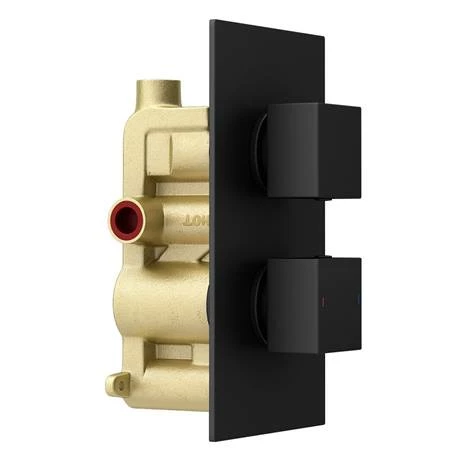

Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Waterfall Spout Details

• Width: 250mm
• Height: 60mm
• Projection: 115mm
• Style: Modern
• Product Type: Built-in Waterfall Spout
• Colour/Finish: Matt Black
• Material: Brass
• Minimum Pressure Required: 0.5 bar
• Pipe Size: 1/2″ BSP

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

Comprises

(1) Matt Black Square Modern Concealed Twin Shower Valve
(1) Toreno Matt Black Wall Mounted Waterfall Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
